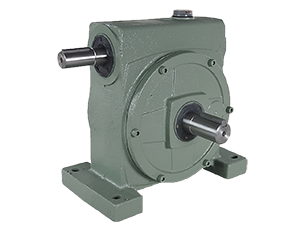

製品仕様
| 中心距離 | 37 |
|---|---|
| 減速比 | 15 |
| 製品重量(kg) | 3.0 |
| 慣性モーメント | 3.5×10^-5kg･㎡ |
| GD^2 | 1.4×10^-4kgｆ･㎡ |
| バックラッシュ | 0.0024～0.0060rad |
| 出力軸許容片持荷重 | 690 |
| 基準作用位置 | 34 |
| 起動効率 | 39 |
| 油種 | ボンノック M320 |
| 油量(ℓ) | 0.15 |
| セルフロック | セルフロックは別表を参照下さい。 |
苏州上野机电设备有限公司销售电话：17895046997 刘经理
| 回転数 （min^-1） | 入力 （kW） | 出力トルク （N･m） | 伝達効率 （%） |
|---|---|---|---|
| 1800 | 0.30 | 15.7 | 65 |
| 1500 | 0.27 | 16.7 | 64 |
| 1200 | 0.24 | 17.6 | 62 |
| 1000 | 0.22 | 19.6 | 61 |
| 500 | 0.13 | 22.5 | 57 |
| 100 | 0.036 | 22.5 | 44 |
苏州上野机电设备有限公司销售型号：
| LB0-10 | LB0-10 | LB0-10 |
| LB0-15 | LB0-15 | LB0-15 |
| LB0-20 | LB0-20 | LB0-20 |
| LB0-25 | LB0-25 | LB0-25 |
| LB0-30 | LB0-30 | LB0-30 |
| LB0-40 | LB0-40 | LB0-40 |
| LB0-50 | LB0-50 | LB0-50 |
| LB0-60 | LB0-60 | LB0-60 |
| LB1-10 | LB1-10 | LB1-10 |
| LB1-15 | LB1-15 | LB1-15 |
| LB1-20 | LB1-20 | LB1-20 |
| LB1-25 | LB1-25 | LB1-25 |
| LB1-30 | LB1-30 | LB1-30 |
| LB1-40 | LB1-40 | LB1-40 |
| LB1-50 | LB1-50 | LB1-50 |
| LB1-60 | LB1-60 | LB1-60 |
| LB1.5-10 | LB1.5-10 | LB1.5-10 |
| LB1.5-15 | LB1.5-15 | LB1.5-15 |
| LB1.5-20 | LB1.5-20 | LB1.5-20 |
| LB1.5-25 | LB1.5-25 | LB1.5-25 |
| LB1.5-30 | LB1.5-30 | LB1.5-30 |
| LB1.5-40 | LB1.5-40 | LB1.5-40 |
| LB1.5-50 | LB1.5-50 | LB1.5-50 |
| LB1.5-60 | LB1.5-60 | LB1.5-60 |
| LB2-10 | LB2-10 | LB2-10 |
| LB2-15 | LB2-15 | LB2-15 |
| LB2-20 | LB2-20 | LB2-20 |
| LB2-25 | LB2-25 | LB2-25 |
| LB2-30 | LB2-30 | LB2-30 |
| LB2-40 | LB2-40 | LB2-40 |
| LB2-50 | LB2-50 | LB2-50 |
| LB2-60 | LB2-60 | LB2-60 |
| LB3-10 | LB3-10 | LB3-10 |
| LB3-15 | LB3-15 | LB3-15 |
| LB3-20 | LB3-20 | LB3-20 |
| LB3-25 | LB3-25 | LB3-25 |
| LB3-30 | LB3-30 | LB3-30 |
| LB3-40 | LB3-40 | LB3-40 |
| LB3-50 | LB3-50 | LB3-50 |
| LB3-60 | LB3-60 | LB3-60 |
| LB4-15 | LB4-15 | LB4-15 |
| LB4-20 | LB4-20 | LB4-20 |
| LB4-25 | LB4-25 | LB4-25 |
| LB4-30 | LB4-30 | LB4-30 |
| LB4-40 | LB4-40 | LB4-40 |
| LB4-50 | LB4-50 | LB4-50 |
| LB4-60 | LB4-60 | LB4-60 |
| LB5-10 | LB5-10 | LB5-10 |
| LB5-15 | LB5-15 | LB5-15 |
| LB5-20 | LB5-20 | LB5-20 |
| LB5-25 | LB5-25 | LB5-25 |
| LB5-30 | LB5-30 | LB5-30 |
| LB5-40 | LB5-40 | LB5-40 |
| LB5-50 | LB5-50 | LB5-50 |
| LB5-60 | LB5-60 | LB5-60 |
| LB6-10 | LB6-10 | LB6-10 |
| LB6-15 | LB6-15 | LB6-15 |
| LB6-20 | LB6-20 | LB6-20 |
| LB6-25 | LB6-25 | LB6-25 |
| LB6-30 | LB6-30 | LB6-30 |
| LB6-40 | LB6-40 | LB6-40 |
| LB6-50 | LB6-50 | LB6-50 |
| LB6-60 | LB6-60 | LB6-60 |
| LB7-15 | LB7-15 | LB7-15 |
| LB7-20 | LB7-20 | LB7-20 |
| LB7-25 | LB7-25 | LB7-25 |
| LB7-30 | LB7-30 | LB7-30 |
| LB7-40 | LB7-40 | LB7-40 |
| LB7-50 | LB7-50 | LB7-50 |
| LB7-60 | LB7-60 | LB7-60 |
| LB8-15 | LB8-15 | LB8-15 |
| LB8-20 | LB8-20 | LB8-20 |
| LB8-25 | LB8-25 | LB8-25 |
| LB8-30 | LB8-30 | LB8-30 |
| LB8-40 | LB8-40 | LB8-40 |
| LB8-60 | LB8-60 | LB8-60 |
| LB9-15 | LB9-15 | LB9-15 |
| LB9-20 | LB9-20 | LB9-20 |
| LB9-25 | LB9-25 | LB9-25 |
| LB9-30 | LB9-30 | LB9-30 |
| LB9-40 | LB9-40 | LB9-40 |
| LB9-50 | LB9-50 | LB9-50 |
| LB9-60 | LB9-60 | LB9-60 |
| LB10-20 | LB10-20 | LB10-20 |
| LB10-30 | LB10-30 | LB10-30 |
| LB10-40 | LB10-40 | LB10-40 |
| LB11-20 | LB11-20 | LB11-20 |
| LB11-30 | LB11-30 | LB11-30 |
| LB11-40 | LB11-40 | LB11-40 |
| LB11-50 | LB11-50 | LB11-50 |
| LB11-60 | LB11-60 | LB11-60 |
| LB12-20 | LB12-20 | LB12-20 |
| LB12-40 | LB12-40 | LB12-40 |
| LB12-50 | LB12-50 | LB12-50 |
