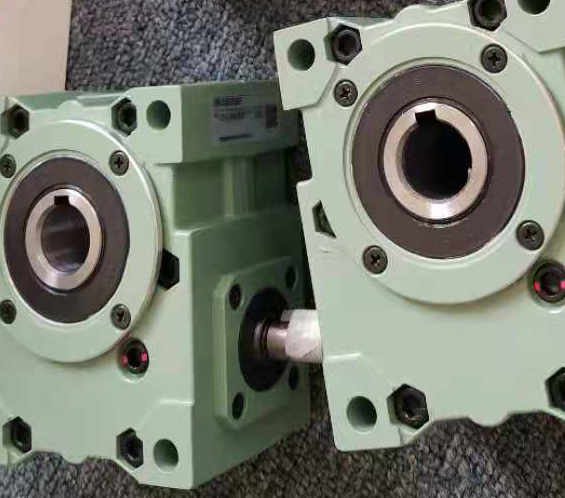

净重：80kgTSUBAKI椿本环面蜗轮蜗杆减速机型号：TD125H50TRF

苏州上野机电设备有限公司询价咨询电话：17895046997  刘先生   同微信

环面蜗杆 TD系列

环面驱动采用鼓形蜗轮，兼具高传动力和高效率。

两种箱体类型，带底脚安装，输出轴为实心轴的类型和法兰安装，输出轴为中空轴的类型。

所有构造设计确保极致的紧凑化和轻量化。

特点

・鼓形蜗轮全面传导动力，兼具高传动力和高性能。最适于简约的装置设计。

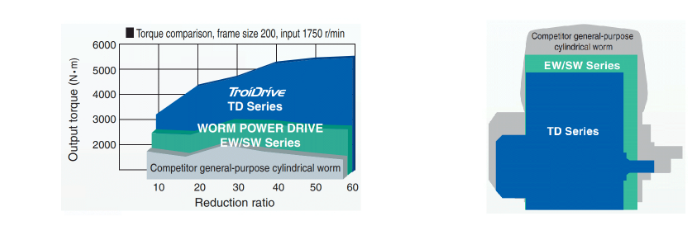

与通用圆柱型蜗轮齿轮同一尺寸的场合，具有1.5～2倍的负荷能力。

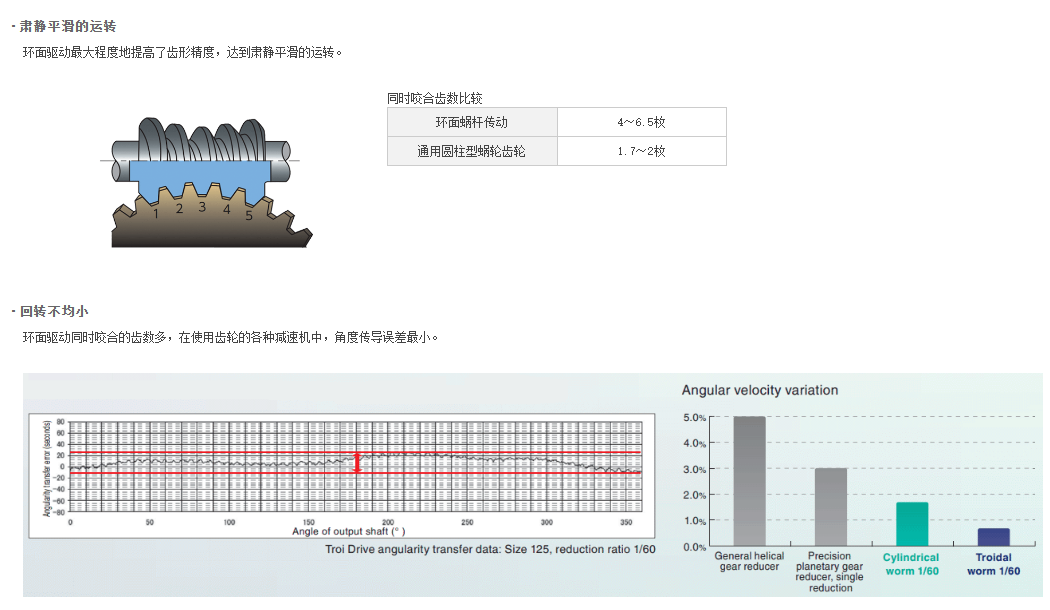

・肃静平滑的运转

环面驱动最大程度地提高了齿形精度，达到肃静平滑的运转。

・回转不均小

环面驱动同时咬合的齿数多，在使用齿轮的各种减速机中，角度传导误差最小。

传动能力表

・1750r/min以上的值受额定热负载限制。短时间运行时请另行咨询。

输出轴容许负载

标准规格

苏州上野机电设备有限公司销售型号：
