日本TSUBAKI椿本长寿命链条型号:RS35-LMC-6LSA1-L
发布时间:2023-09-28 10:04:26 点击次数:413

日本TSUBAKI椿本长寿命链条型号:RS35-LMC-6LSA1-L


苏州上野机电设备有限公司询价咨询电话:17895046997   刘先生    同微信

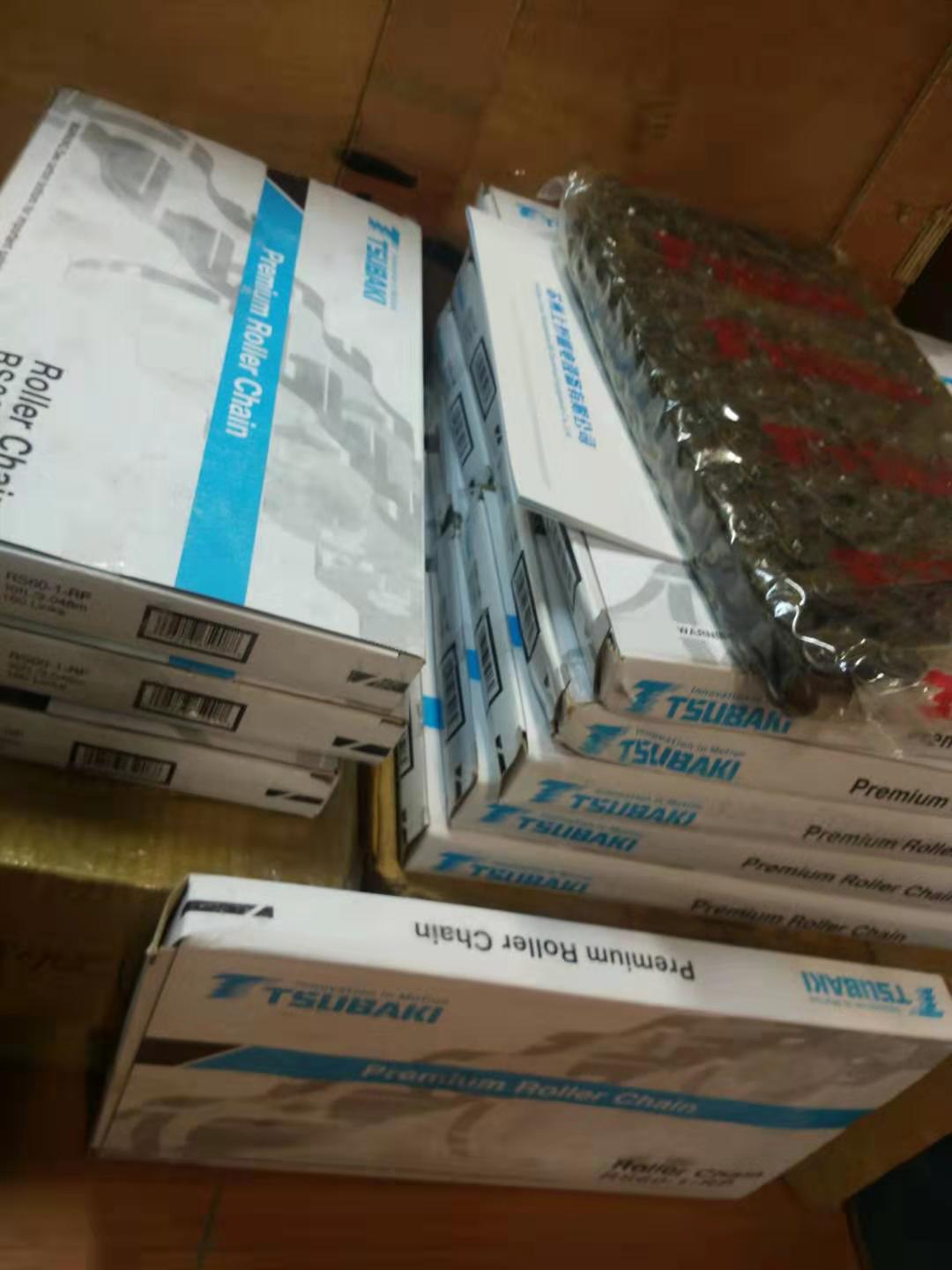

椿本链条 (2).jpg


唾手可得链条是采用特殊含油衬套的链条。


 广泛满足客户对不加油·长寿命的需求,实现总成本降低。


特长:


 内、外板块分别进行了染黑处理。


 通过这个,在使之具有若干耐腐蚀性的同时,成为了具有高级感的成品。

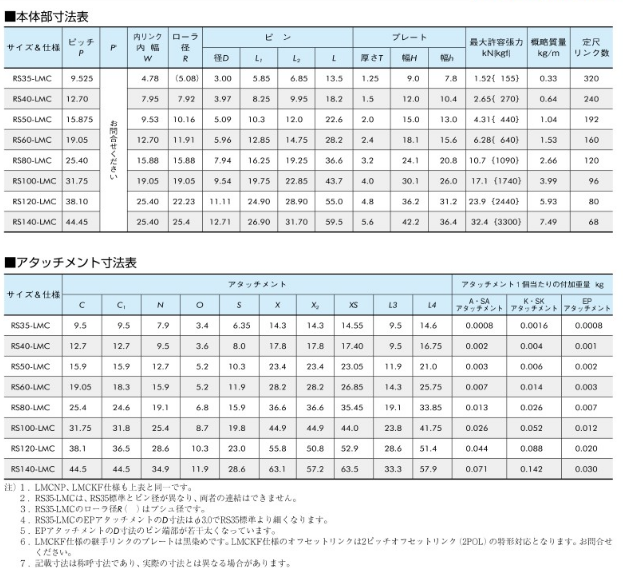

チェーン番号[35] RS35材質スチール
許容張力(範囲選択)(kN)1.50~2.70種別チェーン本体
タイプリンクピッチ P(mm)9.5
(本体部)ローラ径(mm)5内リンク内幅 W(mm)4.7
プレート厚さ T(mm)1.25プレート幅 H(mm)9
ピン径 D(mm)3ピン L1(mm)5.8
ピン L2(mm)6.8アタッチメント種類SA1
アタッチメント 取付間隔6Lアタッチメント C1(mm)9.5
アタッチメント N(mm)7.9アタッチメント O(mm)3.4
アタッチメント S(mm)-アタッチメント X(mm)-
アタッチメント X2(mm)-アタッチメント XS(mm)14.55
アタッチメント L3(mm)-アタッチメント L4(mm)-
平均引張強さ(kN)9.41最大許容張力(kN)1.52
RoHS ?10--






苏州上野机电设备有限公司销售型号:


RS35-LMC-1LA1-L


RS35-LMC-1LK1-L


RS35-LMC-1LSA1-L


RS35-LMC-1LSK1-L


RS35-LMC-2LA1-L


RS35-LMC-2LK1-L


RS35-LMC-2LSA1-L


RS35-LMC-2LSK1-L


RS35-LMC-3LA1-L


RS35-LMC-3LK1-L


RS35-LMC-3LSA1-L


RS35-LMC-3LSK1-L


RS35-LMC-4LA1-L


RS35-LMC-4LK1-L


RS35-LMC-4LSA1-L


RS35-LMC-4LSK1-L


RS35-LMC-5LA1-L


RS35-LMC-5LK1-L


RS35-LMC-5LSA1-L


RS35-LMC-5LSK1-L


RS35-LMC-6LA1-L


RS35-LMC-6LK1-L


RS35-LMC-6LSA1-L


RS35-LMC-6LSK1-L


RS35-LMC-7LA1-L


RS35-LMC-7LK1-L


RS35-LMC-7LSA1-L


RS35-LMC-7LSK1-L


RS35-LMC-8LA1-L


RS35-LMC-8LK1-L


RS35-LMC-8LSA1-L


RS35-LMC-8LSK1-L


RS35-LMC-9LA1-L


RS35-LMC-9LK1-L


RS35-LMC-9LSA1-L


RS35-LMC-9LSK1-L


RS35-LMC-10LA1-L


RS35-LMC-10LK1-L


RS35-LMC-10LSA1-L


RS35-LMC-10LSK1-L


RS35-LMC-L


RS40-LMC-1LA1-L


RS40-LMC-1LSA1-L


RS40-LMC-1LSK1-L


RS40-LMC-2LA1-L


RS40-LMC-2LK1-L


RS40-LMC-2LSA1-L


RS40-LMC-2LSK1-L


RS40-LMC-3LA1-L


RS40-LMC-3LK1-L


RS40-LMC-3LSA1-L


RS40-LMC-3LSK1-L


RS40-LMC-4LA1-L


RS40-LMC-4LK1-L


RS40-LMC-4LSA1-L


RS40-LMC-4LSK1-L


RS40-LMC-5LA1-L


RS40-LMC-5LK1-L


RS40-LMC-5LSA1-L


RS40-LMC-5LSK1-L


RS40-LMC-6LA1-L


RS40-LMC-6LK1-L


RS40-LMC-6LSA1-L


RS40-LMC-6LSK1-L


RS40-LMC-7LA1-L


RS40-LMC-7LK1-L


RS40-LMC-7LSA1-L


RS40-LMC-7LSK1-L


RS40-LMC-8LA1-L


RS40-LMC-8LK1-L


RS40-LMC-8LSA1-L


RS40-LMC-8LSK1-L


RS40-LMC-9LA1-L


RS40-LMC-9LK1-L


RS40-LMC-9LSA1-L


RS40-LMC-9LSK1-L


RS40-LMC-10LA1-L


RS40-LMC-10LK1-L


RS40-LMC-10LSA1-L


RS40-LMC-10LSK1-L


RS40-LMC-L


RS50-LMC-1LK1-L


RS50-LMC-1LSA1-L


RS50-LMC-1LSK1-L


RS50-LMC-2LA1-L


RS50-LMC-2LSA1-L


RS50-LMC-2LSK1-L


RS50-LMC-3LA1-L


RS50-LMC-3LK1-L


RS50-LMC-3LSA1-L


RS50-LMC-3LSK1-L


RS50-LMC-4LA1-L


RS50-LMC-4LSA1-L


RS50-LMC-4LSK1-L


RS50-LMC-5LA1-L


RS50-LMC-5LK1-L


RS50-LMC-5LSA1-L


RS50-LMC-5LSK1-L


RS50-LMC-6LA1-L


RS50-LMC-6LK1-L


RS50-LMC-6LSA1-L


RS50-LMC-6LSK1-L


RS50-LMC-7LA1-L


RS50-LMC-7LK1-L


RS50-LMC-7LSA1-L


RS50-LMC-7LSK1-L


RS50-LMC-8LA1-L


RS50-LMC-8LK1-L


RS50-LMC-8LSA1-L


RS50-LMC-8LSK1-L


RS50-LMC-9LA1-L


RS50-LMC-9LK1-L


RS50-LMC-9LSA1-L


RS50-LMC-9LSK1-L


RS50-LMC-10LA1-L


RS50-LMC-10LK1-L


RS50-LMC-10LSA1-L


RS50-LMC-10LSK1-L


RS50-LMC-L


RS60-LMC-1LK1-L


RS60-LMC-1LSA1-L


RS60-LMC-1LSK1-L


RS60-LMC-2LK1-L


RS60-LMC-2LSA1-L


RS60-LMC-2LSK1-L


RS60-LMC-3LA1-L


RS60-LMC-3LK1-L


RS60-LMC-3LSA1-L


RS60-LMC-3LSK1-L


RS60-LMC-4LA1-L


RS60-LMC-4LK1-L


RS60-LMC-4LSA1-L


RS60-LMC-4LSK1-L


RS60-LMC-5LA1-L


RS60-LMC-5LK1-L


RS60-LMC-5LSA1-L


RS60-LMC-5LSK1-L


RS60-LMC-6LA1-L


RS60-LMC-6LK1-L


RS60-LMC-6LSA1-L


RS60-LMC-6LSK1-L


RS60-LMC-7LA1-L


RS60-LMC-7LK1-L


RS60-LMC-7LSA1-L


RS60-LMC-7LSK1-L


RS60-LMC-8LA1-L


RS60-LMC-8LK1-L


RS60-LMC-8LSA1-L


RS60-LMC-8LSK1-L


RS60-LMC-9LA1-L


RS60-LMC-9LK1-L


RS60-LMC-9LSA1-L


RS60-LMC-9LSK1-L


RS60-LMC-10LA1-L


RS60-LMC-10LK1-L


RS60-LMC-10LSA1-L


RS60-LMC-10LSK1-L


RS60-LMC-L
