日本低噪音TSUBAKI椿本直交轴齿轮减速机型号：HMTA010-38L600L

苏州上野机电设备有限公司询价咨询电话：17895046997  刘先生   同微信

准双曲面齿轮减速电机 TA/TR系列

直交轴型准双曲面齿轮减速机

TA系列（0.1～0.4kW）采用铝架电机和静音刹车，具有小型・轻量・肃静运转的优点。

TR系列符合高能效电机要求。(高能效：IE3级别)

特点

・高效率

与蜗轮相比，滑动少，高效率。相同输出时，消费电力少，经济型驱动。

高效率

・低噪音

利用齿轮电机积累加工技术，确保低噪音和高度的可靠性。

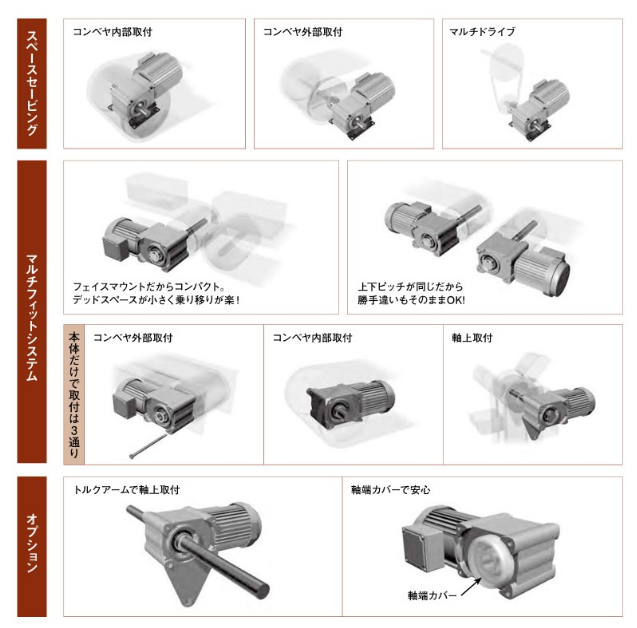

・使用方便

已封入润滑脂，可直接使用。安装方向自由，无限制。

输出轴端实施标准螺孔加工。作为选项，中空轴提供扭矩臂和轴端盖。

・带变频电机(只有0.1kW～0.4kW)

直接联接伺服电机，可对应与标准电机相同的尺寸。在低速领域（6Hz～）也可以100％恒定扭矩运转。

带0.75kW以上高能效电机类型与带伺服电机的类型具有相同特性。

・紧凑

准双曲面齿轮减速机特别重视高度尺寸，构造极其紧凑。

紧凑

安装节距a相同。

・符合海外能效标准要求（TR系列）

由于节能意识的提高，世界各国采用了高能效电机的生产·销售法律规制。

椿本的小型齿轮电机TR系列符合日本国内和世界各国的能效标准要求。

苏州上野机电设备有限公司销售型号：

1/5

HMTA010-20H5

HMTA010-22U5S

HMTA010-22U5T

HMTA010-22L5L

HMTA010-22L5R

HMTA010-22L5T

HMTA010-20H5B

HMTA010-22U5SB

HMTA010-22U5TB

HMTA010-22L5LB

HMTA010-22L5RB

HMTA010-22L5TB

1/7.5

HMTA010-20H7.5

HMTA010-20H7.5B

1/10

HMTA010-20H10

HMTA010-22U10S

HMTA010-22U10T

HMTA010-22L10L

HMTA010-22L10R

HMTA010-22L10T

HMTA010-20H10B

HMTA010-22U10SB

HMTA010-22U10TB

HMTA010-22L10LB

HMTA010-22L10RB

HMTA010-22L10TB

1/12.5

HMTA010-20H12.5

HMTA010-20H12.5B

1/15

HMTA010-20H15

HMTA010-22U15S

HMTA010-22U15T

HMTA010-22L15L

HMTA010-22L15R

HMTA010-22L15T

HMTA010-20H15B

HMTA010-22U15SB

HMTA010-22U15TB

HMTA010-22L15LB

HMTA010-22L15RB

HMTA010-22L15TB

1/20

HMTA010-20H20

HMTA010-22U20S

HMTA010-22U20T

HMTA010-22L20L

HMTA010-22L20R

HMTA010-22L20T

HMTA010-20H20B

HMTA010-22U20SB

HMTA010-22U20TB

HMTA010-22L20LB

HMTA010-22L20RB

HMTA010-22L20TB

1/25

HMTA010-20H25

HMTA010-22U25S

HMTA010-22U25T

HMTA010-22L25L

HMTA010-22L25R

HMTA010-22L25T

HMTA010-20H25B

HMTA010-22U25SB

HMTA010-22U25TB

HMTA010-22L25LB

HMTA010-22L25RB

HMTA010-22L25TB

1/30

HMTA010-20H30

HMTA010-22U30S

HMTA010-22U30T

HMTA010-22L30L

HMTA010-22L30R

HMTA010-22L30T

HMTA010-20H30B

HMTA010-22U30SB

HMTA010-22U30TB

HMTA010-22L30LB

HMTA010-22L30RB

HMTA010-22L30TB

1/40

HMTA010-20H40

HMTA010-22U40S

HMTA010-22U40T

HMTA010-22L40L

HMTA010-22L40R

HMTA010-22L40T

HMTA010-20H40B

HMTA010-22U40SB

HMTA010-22U40TB

HMTA010-22L40LB

HMTA010-22L40RB

HMTA010-22L40TB

1/50

HMTA010-20H50

HMTA010-22U50S

HMTA010-22U50T

HMTA010-22L50L

HMTA010-22L50R

HMTA010-22L50T

HMTA010-20H50B

HMTA010-22U50SB

HMTA010-22U50TB

HMTA010-22L50LB

HMTA010-22L50RB

HMTA010-22L50TB

1/60

HMTA010-20H60

HMTA010-22U60S

HMTA010-22U60T

HMTA010-22L60L

HMTA010-22L60R

HMTA010-22L60T

HMTA010-20H60B

HMTA010-22U60SB

HMTA010-22U60TB

HMTA010-22L60LB

HMTA010-22L60RB

HMTA010-22L60TB

1/80

HMTA010-20H80

HMTA010-22U80S

HMTA010-22U80T

HMTA010-22L80L

HMTA010-22L80R

HMTA010-22L80T

HMTA010-20H80B

HMTA010-22U80SB

HMTA010-22U80TB

HMTA010-22L80LB

HMTA010-22L80RB

HMTA010-22L80TB

1/100

HMTA010-20H100

HMTA010-22U100S

HMTA010-22U100T

HMTA010-22L100L

HMTA010-22L100R

HMTA010-22L100T

HMTA010-20H100B

HMTA010-22U100SB

HMTA010-22U100TB

HMTA010-22L100LB

HMTA010-22L100RB

HMTA010-22L100TB

1/120

HMTA010-20H120

HMTA010-22U120S

HMTA010-22U120T

HMTA010-22L120L

HMTA010-22L120R

HMTA010-22L120T

HMTA010-20H120B

HMTA010-22U120SB

HMTA010-22U120TB

HMTA010-22L120LB

HMTA010-22L120RB

HMTA010-22L120TB

1/160

HMTA010-30H160

HMTA010-24U160S

HMTA010-24U160T

HMTA010-24L160L

HMTA010-24L160R

HMTA010-24L160T

HMTA010-30H160B

HMTA010-24U160SB

HMTA010-24U160TB

HMTA010-24L160LB

HMTA010-24L160RB

HMTA010-24L160TB

1/200

HMTA010-30H200

HMTA010-24U200S

HMTA010-24U200T

HMTA010-24L200L

HMTA010-24L200R

HMTA010-24L200T

HMTA010-30H200B

HMTA010-24U200SB

HMTA010-24U200TB

HMTA010-24L200LB

HMTA010-24L200RB

HMTA010-24L200TB

1/300

HMTA010-30H300

HMTA010-28U300S

HMTA010-28U300T

HMTA010-28L300L

HMTA010-28L300R

HMTA010-28L300T

HMTA010-30H300B

HMTA010-28U300SB

HMTA010-28U300TB

HMTA010-28L300LB

HMTA010-28L300RB

HMTA010-28L300TB

1/360

HMTA010-30H360

HMTA010-28U360S

HMTA010-28U360T

HMTA010-28L360L

HMTA010-28L360R

HMTA010-28L360T

HMTA010-30H360B

HMTA010-28U360SB

HMTA010-28U360TB

HMTA010-28L360LB

HMTA010-28L360RB

HMTA010-28L360TB

1/480

HMTA010-30H480

HMTA010-28U480S

HMTA010-28U480T

HMTA010-28L480L

HMTA010-28L480R

HMTA010-28L480T

HMTA010-30H480B

HMTA010-28U480SB

HMTA010-28U480TB

HMTA010-28L480LB

HMTA010-28L480RB

HMTA010-28L480TB

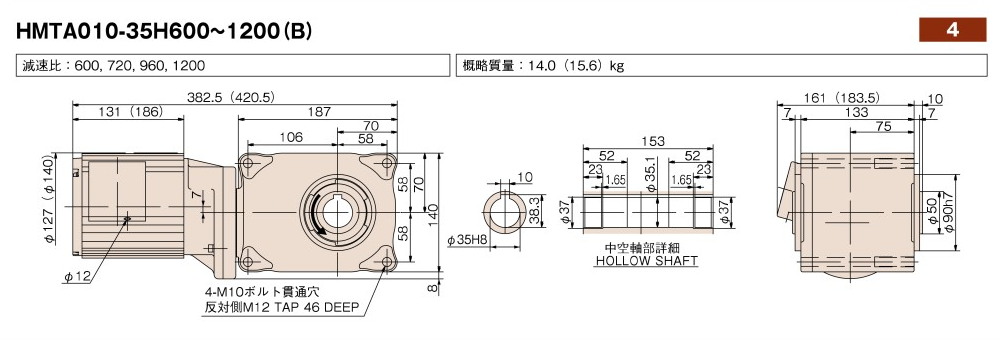

1/600

HMTA010-35H600

HMTA010-38U600S

HMTA010-38U600T

HMTA010-38L600L

HMTA010-38L600R

HMTA010-38L600T

HMTA010-35H600B

HMTA010-38U600SB

HMTA010-38U600TB

HMTA010-38L600LB

HMTA010-38L600RB

HMTA010-38L600TB

1/720

HMTA010-35H720

HMTA010-38U720S

HMTA010-38U720T

HMTA010-38L720L

HMTA010-38L720R

HMTA010-38L720T

HMTA010-35H720B

HMTA010-38U720SB

HMTA010-38U720TB

HMTA010-38L720LB

HMTA010-38L720RB

HMTA010-38L720TB

1/960

HMTA010-35H960

HMTA010-38U960S

HMTA010-38U960T

HMTA010-38L960L

HMTA010-38L960R

HMTA010-38L960T

HMTA010-35H960B

HMTA010-38U960SB

HMTA010-38U960TB

HMTA010-38L960LB

HMTA010-38L960RB

HMTA010-38L960TB

1/1200

HMTA010-35H1200

HMTA010-38U1200S

HMTA010-38U1200T

HMTA010-38L1200L

HMTA010-38L1200R

HMTA010-38L1200T

HMTA010-35H1200B

HMTA010-38U1200SB

HMTA010-38U1200TB

HMTA010-38L1200LB

HMTA010-38L1200RB

HMTA010-38L1200TB
