低噪音低出尘低振动的TSUBAKI椿本塑料拖链型号：TKMK47H28DE24R100TC

苏州上野机电设备有限公司询价咨询电话；17895046997    刘先生    同微信

特点：

・全尺寸可多级隔开。

・隔板可以选择滑动或完全固定。而且是可以特殊宽度等多功能的电缆。

标注

滑动部如果有铁粉或粉尘等促进磨损等物质，会造成异常磨损或屈曲。请采取措施防止上述物质的堆积。

使用注意事项

※使用时请注意以下事项。

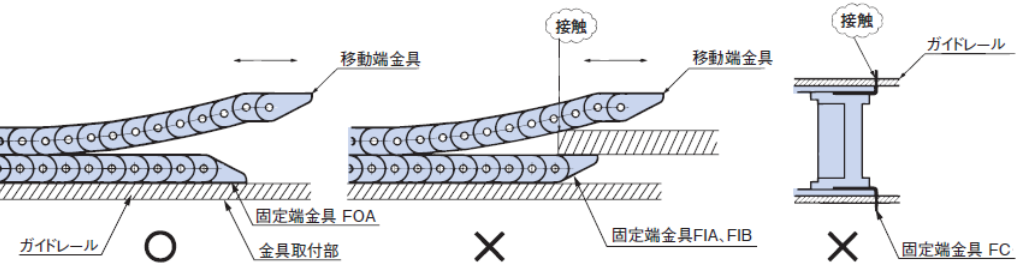

• ■ 务必设置导轨。

• 采用椿本特殊导轨更加方便。如客户自行制作，请参考上图。

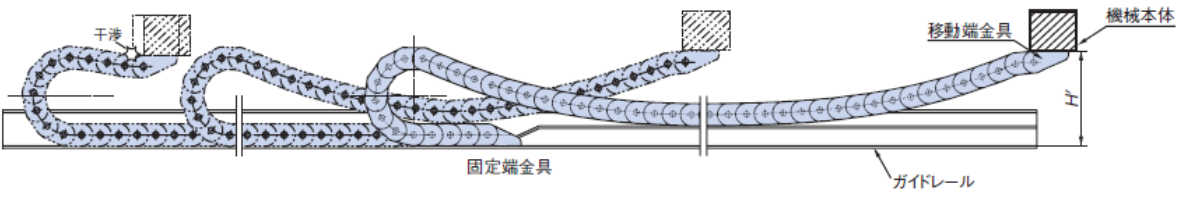

• ■ 请注意H尺寸。

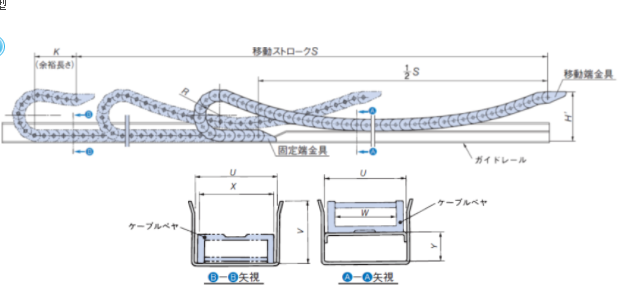

• 与标准设置时的H尺寸不同。请按照长跨距规格一览表的尺寸设置。此尺寸过高或过低会引起电缆拖链的屈曲或上浮，造成拖链的破损。

• ■ 请确保充分的富余长度（K尺寸）

• 与标准设置时的富余长度不同。所设定的链节数需等同或大于长跨距规格一览表中的尺寸。如果尺寸小，当移动端在无支撑跨距长度最短的位置上时，链节会被过度反向弯曲，造成拖链的破损。

• ■ 需要特型移动端支架。(部分型号除外)

• 特殊型号的移动端支架可朝两个方向弯曲。TKP45H25，TKP58H39的链销突出尺寸与标准型不同。

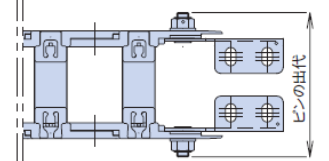

尺寸		链销的突出
TKP45H26	W38	内宽 W+40
	上述以外	内宽 W+42
TKP58H39		内宽 W+45
TKP68H46 (使用钢制支架时)		内宽 W+46

长跨距/滑橇规格

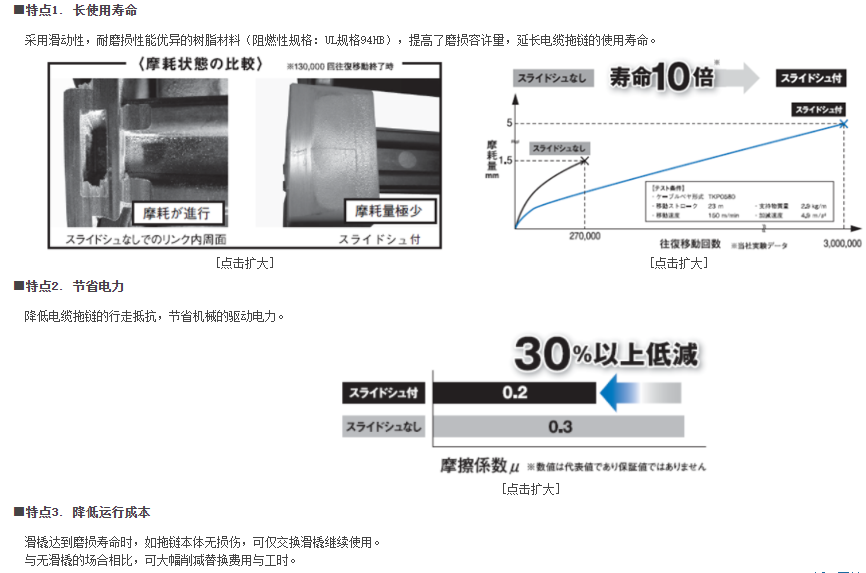

长跨距/滑橇规格适于长行程，可高速移动，延长使用寿命，节省电力与运营成本，有助于降低全体成本与环境负荷。
