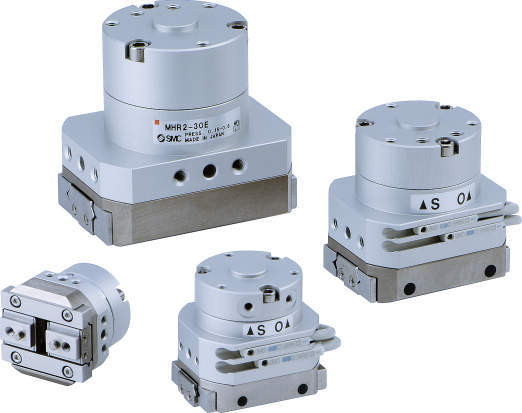

高度方向小型化回转驱动型SMC气爪型号：MDHR2-10R-M9NLS

苏州上野机电设备有限公司询价咨询电话：17895046997     刘先生   同微信

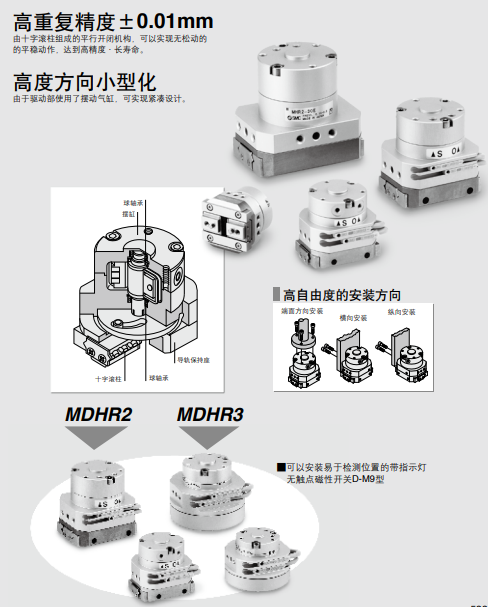

特点：

■高重复精度±0.01mm

·通过交叉滚子引导件的平行开闭机构，以无松动的平滑运动，高精度、长寿命。

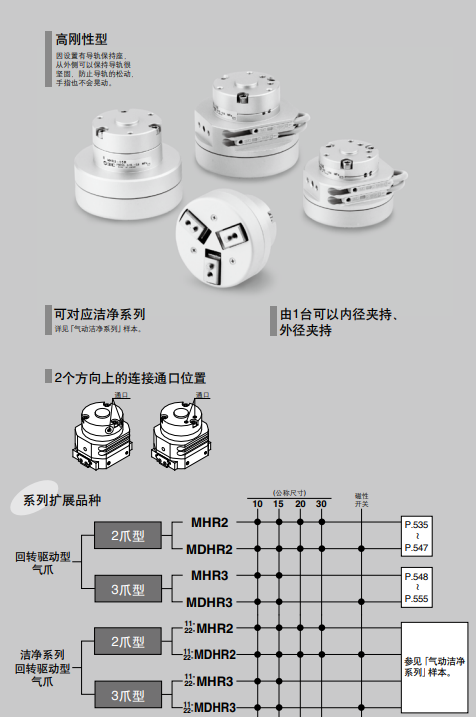

■高刚性型

・通过设置导向支架，从外侧牢固地保持导向件，防止导向件的偏移，因此不会产生指状件的晃动。

■高度方向小型化

·通过使用旋转致动器作为驱动源，可进行紧凑的设计。

■1台可进行内径把持、外径把持

■自由度高的安装方向

・端面方向安装、横向安装、纵向安装。

■2方向的连接端口位置

■带自动开关（MDHR2）

■容易检测动作位置的指示器

・可安装带灯的无触点自动开关D-M9型。

苏州上野机电设备有限公司销售型号：

MHR2-10R

MHR2-10R-X32

MHR2-10R-X63

MHR2-10E

MHR2-10E-X32

MHR2-15R

MHR2-15R-X32

MHR2-15R-X63

MHR2-15E

MHR2-15E-X32

MHR2-20R

MHR2-20R-X32

MHR2-20E

MHR2-30R

MHR2-30E

MHR2-30E-X32

MDHR2-10R

MDHR2-10R-X32

MDHR2-10R-X63

MDHR2-10E

MDHR2-10E-X63

MDHR2-10R-M9NS

MDHR2-10R-M9N

MDHR2-10R-M9NLS

MDHR2-10R-M9NL

MDHR2-10R-M9NZ

MDHR2-10R-M9NSAPC

MDHR2-10R-M9P

MDHR2-10R-M9PL

MDHR2-10R-M9PZ

MDHR2-10R-M9PSAPC

MDHR2-10R-M9PMAPC

MDHR2-10R-M9BS

MDHR2-10R-M9B

MDHR2-10R-M9BM

MDHR2-10R-M9BLS

MDHR2-10R-M9BL

MDHR2-10R-M9BL-X32

MDHR2-10R-M9BZ

MDHR2-10R-M9NVS

MDHR2-10R-M9NV

MDHR2-10R-M9NVMS

MDHR2-10R-M9NVM

MDHR2-10R-M9NVLS

MDHR2-10R-M9NVL

MDHR2-10R-M9NVL-X63

MDHR2-10R-M9PV

MDHR2-10R-M9PVL

MDHR2-10R-M9BVS

MDHR2-10R-M9BV

MDHR2-10R-M9BVM

MDHR2-10R-M9BVLS

MDHR2-10R-M9BVL

MDHR2-10R-M9BVL-X63

MDHR2-10R-M9BVZ

MDHR2-10R-M9NW

MDHR2-10R-M9NWL

MDHR2-10R-M9PW

MDHR2-10R-M9BW

MDHR2-10R-M9BWL

MDHR2-10R-M9BWZ

MDHR2-10R-M9NWV

MDHR2-10R-M9NWV3

MDHR2-10R-M9NWVL

MDHR2-10R-M9BWV

MDHR2-10R-M9BWVL

MDHR2-10R-M9BWVZ

MDHR2-10R-M9BAZ

MDHR2-10R-M9BAV

MDHR2-10R-M9BAVL

MDHR2-10E-M9NS

MDHR2-10E-M9N

MDHR2-10E-M9NMS

MDHR2-10E-M9NM

MDHR2-10E-M9NLS

MDHR2-10E-M9NL

MDHR2-10E-M9P

MDHR2-10E-M9BS

MDHR2-10E-M9B

MDHR2-10E-M9BLS

MDHR2-10E-M9BL

MDHR2-10E-M9BZS

MDHR2-10E-M9BZ

MDHR2-10E-M9NV

MDHR2-10E-M9BV

MDHR2-10E-M9BVL

MDHR2-10E-M9NWS

MDHR2-10E-M9BW

MDHR2-10E-M9BWL

MDHR2-10E-M9BWVL

MDHR2-15R

MDHR2-15R-X32

MDHR2-15R-X63

MDHR2-15E

MDHR2-15E-X32

MDHR2-15R-M9NS

MDHR2-15R-M9N

MDHR2-15R-M9N-X63

MDHR2-15R-M9NM

MDHR2-15R-M9NLS

MDHR2-15R-M9NLS-X63

MDHR2-15R-M9NL

MDHR2-15R-M9NZ

MDHR2-15R-M9NSAPC

MDHR2-15R-M9PS-X32

MDHR2-15R-M9P

MDHR2-15R-M9PL

MDHR2-15R-M9PSAPC

MDHR2-15R-M9PSDPC

MDHR2-15R-M9BS

MDHR2-15R-M9BS-X63

MDHR2-15R-M9B

MDHR2-15R-M9B-X32

MDHR2-15R-M9B-X63

MDHR2-15R-M9BM

MDHR2-15R-M9BLS

MDHR2-15R-M9BLS-X32

MDHR2-15R-M9BL

MDHR2-15R-M9BL-X32

MDHR2-15R-M9BZ

MDHR2-15R-M9BSAPC

MDHR2-15R-M9BSDPC

MDHR2-15R-M9NVS

MDHR2-15R-M9NV

MDHR2-15R-M9NVLS

MDHR2-15R-M9NVL

MDHR2-15R-M9PVSDPC

MDHR2-15R-M9BVS

MDHR2-15R-M9BV

MDHR2-15R-M9BVMS

MDHR2-15R-M9BVM

MDHR2-15R-M9BVLS

MDHR2-15R-M9BVL

MDHR2-15R-M9BVZ

MDHR2-15R-M9PWL

MDHR2-15R-M9BW

MDHR2-15R-M9BW-X32

MDHR2-15R-M9BWLS

MDHR2-15R-M9BWL

MDHR2-15R-M9BWZ

MDHR2-15R-M9NWV

MDHR2-15R-M9BWVL

MDHR2-15R-M9BAL

MDHR2-15R-M9PAV3

MDHR2-15R-M9BAV

MDHR2-15R-M9BAVZ

MDHR2-15E-M9NS

MDHR2-15E-M9N

MDHR2-15E-M9NL

MDHR2-15E-M9NZ

MDHR2-15E-M9PSAPC

MDHR2-15E-M9BS

MDHR2-15E-M9B

MDHR2-15E-M9BM

MDHR2-15E-M9BLS

MDHR2-15E-M9BL

MDHR2-15E-M9PVZ

MDHR2-15E-M9BV

MDHR2-15E-M9BVM

MDHR2-15E-M9BVLS

MDHR2-15E-M9BVL

MDHR2-15E-M9BVZ

MDHR2-15E-M9NWS

MDHR2-15E-M9NW

MDHR2-15E-M9BWS

MDHR2-15E-M9BW

MDHR2-15E-M9BWL

MDHR2-15E-M9BWSDPCS

MDHR2-15E-M9BAL

MDHR2-20R

MDHR2-20R-X32

MDHR2-20R-X63

MDHR2-20E

MDHR2-20E-X32

MDHR2-20R-M9NS

MDHR2-20R-M9N

MDHR2-20R-M9NM

MDHR2-20R-M9NM-X63

MDHR2-20R-M9NL

MDHR2-20R-M9NSAPC

MDHR2-20R-M9NSDPC

MDHR2-20R-M9NMDPC

MDHR2-20R-M9PL

MDHR2-20R-M9PSAPC

MDHR2-20R-M9PMDPC

MDHR2-20R-M9BS

MDHR2-20R-M9B

MDHR2-20R-M9B4

MDHR2-20R-M9BLS

MDHR2-20R-M9BLS-X32

MDHR2-20R-M9BL

MDHR2-20R-M9BZ

MDHR2-20R-M9BSAPC

MDHR2-20R-M9BSDPC

MDHR2-20R-M9NVS

MDHR2-20R-M9NV

MDHR2-20R-M9NVL

MDHR2-20R-M9BV

MDHR2-20R-M9BVM

MDHR2-20R-M9BVLS

MDHR2-20R-M9BVL

MDHR2-20R-M9BVL3

MDHR2-20R-M9BVZ

MDHR2-20R-M9NW

MDHR2-20R-M9BWS

MDHR2-20R-M9BW

MDHR2-20R-M9BWM

MDHR2-20R-M9BWM-X63

MDHR2-20R-M9BWLS

MDHR2-20R-M9BWL

MDHR2-20R-M9BWSDPCS

MDHR2-20R-M9BWSDPC

MDHR2-20R-M9NWVZ

MDHR2-20R-M9BWV

MDHR2-20R-M9BWVL

MDHR2-20R-M9BA

MDHR2-20R-M9BAL

MDHR2-20R-M9BAVL

MDHR2-20E-M9N

MDHR2-20E-M9NZ

MDHR2-20E-M9B

MDHR2-20E-M9BLS

MDHR2-20E-M9BLS-X32

MDHR2-20E-M9BL

MDHR2-20E-M9NV

MDHR2-20E-M9NVL

MDHR2-20E-M9BV

MDHR2-20E-M9BVL

MDHR2-20E-M9BVZ

MDHR2-20E-M9BALS

MDHR2-20E-M9BAZ

MDHR2-20E-M9BASDPC

MDHR2-30R

MDHR2-30E

MDHR2-30E-X32

MDHR2-30R-M9NS

MDHR2-30R-M9N

MDHR2-30R-M9NM

MDHR2-30R-M9NLS

MDHR2-30R-M9NL

MDHR2-30R-M9P

MDHR2-30R-M9PSAPC

MDHR2-30R-M9PSBPC

MDHR2-30R-M9BS

MDHR2-30R-M9B

MDHR2-30R-M9B3

MDHR2-30R-M9BM

MDHR2-30R-M9BLS

MDHR2-30R-M9BL

MDHR2-30R-M9BZ

MDHR2-30R-M9NV

MDHR2-30R-M9NVL

MDHR2-30R-M9NVZ

MDHR2-30R-M9BVS

MDHR2-30R-M9BV

MDHR2-30R-M9BV3

MDHR2-30R-M9BVLS

MDHR2-30R-M9BVL

MDHR2-30R-M9BVL3

MDHR2-30R-M9BVZ

MDHR2-30R-M9BVSDPC

MDHR2-30R-M9NW

MDHR2-30R-M9PW

MDHR2-30R-M9BW

MDHR2-30R-M9BW3

MDHR2-30R-M9BW4

MDHR2-30R-M9BW5

MDHR2-30R-M9BW6

MDHR2-30R-M9BWM

MDHR2-30R-M9BWL

MDHR2-30R-M9BWZ

MDHR2-30R-M9NWVL

MDHR2-30R-M9BWV

MDHR2-30R-M9BWV3

MDHR2-30R-M9BWVL

MDHR2-30R-M9BALS

MDHR2-30R-M9BAL

MDHR2-30R-M9BAZ

MDHR2-30R-M9BASBPC

MDHR2-30E-M9N

MDHR2-30E-M9NM

MDHR2-30E-M9NLS

MDHR2-30E-M9NL

MDHR2-30E-M9P

MDHR2-30E-M9PL

MDHR2-30E-M9B

MDHR2-30E-M9BL

MDHR2-30E-M9NV

MDHR2-30E-M9PV

MDHR2-30E-M9BVS

MDHR2-30E-M9BV

MDHR2-30E-M9BVLS

MDHR2-30E-M9BVL

MDHR2-30E-M9BW

MDHR2-30E-M9BWL

MDHR2-30E-M9BAL

MDHR2-30E-M9BAZS

MDHR2-30E-M9BAZ
