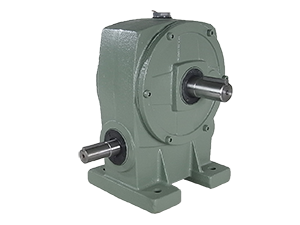

LA (蜗杆1段)1/10~1/60
因为是无电机型，所以有输入轴转速可以任意选择的便利性。 这是一种没有故障，可以在任何地方广泛使用的形式。 型号、制动器尺寸、减速比多，可根据用途选择。 因为使用了最适合蜗杆的润滑油，所以效率也变得更好了。
全国服务热线：0512-6605 1469
在线咨询| 製品記号 | 中心距離 | 減速比 | 入力回転数 | 入力 | 出力トルク | 製品重量 | 油量 |
| (製品記号について) | (min??) | (kW) | (N･m) | (kg) | (ℓ) | ||
| 37 | 10 | 1800 | 0.33 | 13.70 | 3.00 | 0.15 | |
| LA0-10 | 1500 | 0.30 | 14.70 | ||||
| 37 | 15 | 1800 | 0.30 | 15.70 | 3.00 | 0.15 | |
| LA0-15 | 1500 | 0.27 | 16.70 | ||||
| 37 | 20 | 1800 | 0.25 | 16.70 | 3.00 | 0.15 | |
| LA0-20 | 1500 | 0.22 | 17.60 | ||||
| 37 | 25 | 1800 | 0.22 | 16.70 | 3.00 | 0.15 | |
| LA0-25 | 1500 | 0.19 | 17.60 | ||||
| 37 | 30 | 1800 | (0.24) | (17.60) | 3.00 | 0.15 | |
| LA0-30 | 1500 | (0.22) | (18.60) | ||||
| 37 | 40 | 1800 | (0.19) | (18.60) | 3.00 | 0.15 | |
| LA0-40 | 1500 | (0.17) | (19.60) | ||||
| 37 | 50 | 1800 | (0.17) | (17.60) | 3.00 | 0.15 | |
| LA0-50 | 1500 | (0.15) | (18.60) | ||||
| 37 | 60 | 1800 | (0.12) | (15.70) | 3.00 | 0.15 | |
| LA0-60 | 1500 | (0.11) | (16.70) | ||||
| 53 | 10 | 1800 | 1.20 | 52.90 | 6.00 | 0.40 | |
| LA1-10 | 1500 | 1.10 | 57.80 | ||||
| 53 | 15 | 1800 | 0.89 | 55.90 | 6.00 | 0.40 | |
| LA1-15 | 1500 | 0.78 | 57.80 | ||||
| 53 | 20 | 1800 | 0.61 | 47.00 | 6.00 | 0.40 | |
| LA1-20 | 1500 | 0.57 | 51.90 | ||||
| 53 | 25 | 1800 | 0.52 | 51.90 | 6.00 | 0.40 | |
| LA1-25 | 1500 | 0.48 | 55.90 | ||||
| 53 | 30 | 1800 | 0.60 | 63.70 | 6.00 | 0.40 | |
| LA1-30 | 1500 | 0.54 | 67.60 | ||||
| 53 | 40 | 1800 | 0.49(0.40) | 58.8(42.9) | 6.00 | 0.40 | |
| LA1-40 | 1500 | 0.43(0.36) | 60.8(45.4) | ||||
| 53 | 50 | 1800 | 0.37(0.34) | 56.8(44.6) | 6.00 | 0.40 | |
| LA1-50 | 1500 | 0.32(0.31) | 58.8(47.1) | ||||
| 53 | 60 | 1800 | (0.30) | (41.20) | 6.00 | 0.40 | |
| LA1-60 | 1500 | (0.28) | (43.10) | ||||
| 60 | 10 | 1800 | 1.60 | 71.50 | 8.50 | 0.40 | |
| LA1.5-10 | 1500 | 1.50 | 77.40 | ||||
| 60 | 15 | 1800 | 1.30 | 79.40 | 8.50 | 0.40 | |
| LA1.5-15 | 1500 | 1.20 | 85.30 | ||||
| 60 | 20 | 1800 | 0.94 | 71.50 | 8.50 | 0.40 | |
| LA1.5-20 | 1500 | 0.85 | 77.40 | ||||
| 60 | 25 | 1800 | 0.74 | 63.70 | 8.50 | 0.40 | |
| LA1.5-25 | 1500 | 0.65 | 66.60 | ||||
| 60 | 30 | 1800 | 0.86 | 86.20 | 8.50 | 0.40 | |
| LA1.5-30 | 1500 | 0.80 | 96.00 | ||||
| 60 | 40 | 1800 | 0.67(0.57) | 80.4(67.6) | 8.50 | 0.40 | |
| LA1.5-40 | 1500 | 0.63(0.52) | 88.2(71.6) | ||||
| 60 | 50 | 1800 | (0.55) | (70.60) | 8.50 | 0.40 | |
| LA1.5-50 | 1500 | (0.51) | (77.40) | ||||
| 60 | 60 | 1800 | (0.47) | (69.60) | 8.50 | 0.40 | |
| LA1.5-60 | 1500 | (0.46) | (74.50) | ||||
| 76 | 10 | 1800 | 3.00 | 137.00 | 11.00 | 0.35 | |
| LA2-10 | 1500 | 2.70 | 147.00 | ||||
| 76 | 15 | 1800 | 2.40 | 157.00 | 11.00 | 0.35 | |
| LA2-15 | 1500 | 2.20 | 167.00 | ||||
| 76 | 20 | 1800 | 1.70 | 137.00 | 11.00 | 0.35 | |
| LA2-20 | 1500 | 1.40 | 137.00 | ||||
| 76 | 25 | 1800 | 1.40 | 137.00 | 11.00 | 0.35 | |
| LA2-25 | 1500 | 1.20 | 147.00 | ||||
| 76 | 30 | 1800 | 1.60 | 176.00 | 11.00 | 0.35 | |
| LA2-30 | 1500 | 1.40 | 186.00 | ||||
| 76 | 40 | 1800 | 1.20(0.87) | 157(111) | 11.00 | 0.35 | |
| LA2-40 | 1500 | 1.10(0.79) | 167(118) | ||||
| 76 | 50 | 1800 | 0.97(0.84) | 157(124) | 11.00 | 0.35 | |
| LA2-50 | 1500 | 0.87(0.79) | 167(134) | ||||
| 76 | 60 | 1800 | (0.81) | (137.00) | 11.00 | 0.35 | |
| LA2-60 | 1500 | (0.69) | (137.00) | ||||
| 86 | 10 | 1800 | 4.30 | 196.00 | 16.00 | 0.45 | |
| LA3-10 | 1500 | 3.80 | 206.00 | ||||
| 86 | 15 | 1800 | 3.20 | 206.00 | 16.00 | 0.45 | |
| LA3-15 | 1500 | 3.00 | 225.00 | ||||
| 86 | 20 | 1800 | 2.40 | 206.00 | 16.00 | 0.45 | |
| LA3-20 | 1500 | 2.10 | 206.00 | ||||
| 86 | 25 | 1800 | 2.00 | 186.00 | 16.00 | 0.45 | |
| LA3-25 | 1500 | 1.80 | 196.00 | ||||
| 86 | 30 | 1800 | 2.30 | 245.00 | 16.00 | 0.45 | |
| LA3-30 | 1500 | 2.00 | 265.00 | ||||
| 86 | 40 | 1800 | 1.60(1.40) | 225(183) | 16.00 | 0.45 | |
| LA3-40 | 1500 | 1.40(1.26) | 235(193) | ||||
| 86 | 50 | 1800 | 1.40(1.11) | 196(166) | 16.00 | 0.45 | |
| LA3-50 | 1500 | 1.30(1.03) | 225(178) | ||||
| 86 | 60 | 1800 | (1.00) | (176.00) | 16.00 | 0.45 | |
| LA3-60 | 1500 | (0.94) | (186.00) | ||||
| 100 | 10 | 1800 | 5.80 | 265.00 | 35.00 | 0.75 | |
| LA4-10 | 1500 | 5.30 | 284.00 | ||||
| 100 | 15 | 1800 | 4.60 | 294.00 | 35.00 | 0.75 | |
| LA4-15 | 1500 | 4.20 | 314.00 | ||||
| 100 | 20 | 1800 | 3.50 | 294.00 | 35.00 | 0.75 | |
| LA4-20 | 1500 | 3.20 | 314.00 | ||||
| 100 | 25 | 1800 | 2.30 | 245.00 | 35.00 | 0.75 | |
| LA4-25 | 1500 | 2.20 | 274.00 | ||||
| 100 | 30 | 1800 | 3.20 | 343.00 | 35.00 | 0.75 | |
| LA4-30 | 1500 | 2.80 | 353.00 | ||||
| 100 | 40 | 1800 | 2.40(2.00) | 333(269) | 35.00 | 0.75 | |
| LA4-40 | 1500 | 2.30(1.90) | 372(286) | ||||
| 100 | 50 | 1800 | 1.80(1.60) | 314(258) | 35.00 | 0.75 | |
| LA4-50 | 1500 | 1.70(1.50) | 343(279) | ||||
| 100 | 60 | 1800 | 1.70(1.40) | 294(240) | 35.00 | 0.75 | |
| LA4-60 | 1500 | 1.60(1.30) | 314(259) | ||||
| 123 | 10 | 1800 | 11.00 | 500.00 | 41.00 | 1.10 | |
| LA5-10 | 1500 | 10.00 | 539.00 | ||||
| 123 | 15 | 1800 | 8.30 | 549.00 | 41.00 | 1.10 | |
| LA5-15 | 1500 | 7.60 | 598.00 | ||||
| 123 | 20 | 1800 | 5.90 | 510.00 | 41.00 | 1.10 | |
| LA5-20 | 1500 | 5.10 | 549.00 | ||||
| 123 | 25 | 1800 | 4.50 | 490.00 | 41.00 | 1.10 | |
| LA5-25 | 1500 | 4.00 | 510.00 | ||||
| 123 | 30 | 1800 | 5.70 | 647.00 | 41.00 | 1.10 | |
| LA5-30 | 1500 | 4.90 | 666.00 | ||||
| 123 | 40 | 1800 | 3.90(3.00) | 568(411) | 41.00 | 1.10 | |
| LA5-40 | 1500 | 3.80(2.80) | 637(441) | ||||
| 123 | 50 | 1800 | 3.30(2.60) | 549(415) | 41.00 | 1.10 | |
| LA5-50 | 1500 | 2.90(2.40) | 578(451) | ||||
| 123 | 60 | 1800 | (2.60) | (490.00) | 41.00 | 1.10 | |
| LA5-60 | 1500 | (2.30) | (519.00) | ||||
| 148 | 10 | 1800 | 18.00 | 813.00 | 74.00 | 2.50 | |
| LA6-10 | 1500 | 15.00 | 892.00 | ||||
| 148 | 15 | 1800 | 13.00 | 911.00 | 74.00 | 2.50 | |
| LA6-15 | 1500 | 12.00 | 980.00 | ||||
| 148 | 20 | 1800 | 9.40 | 813.00 | 74.00 | 2.50 | |
| LA6-20 | 1500 | 8.70 | 902.00 | ||||
| 148 | 25 | 1800 | 7.40 | 804.00 | 74.00 | 2.50 | |
| LA6-25 | 1500 | 6.60 | 843.00 | ||||
| 148 | 30 | 1800 | 9.60 | 1078.00 | 74.00 | 2.50 | |
| LA6-30 | 1500 | 8.60 | 1176.00 | ||||
| 148 | 40 | 1800 | 6.00 | 951.00 | 74.00 | 2.50 | |
| LA6-40 | 1500 | 5.20 | 980.00 | ||||
| 148 | 50 | 1800 | 5.10(4.30) | 921(725) | 74.00 | 2.50 | |
| LA6-50 | 1500 | 4.60(4.00) | 980(788) | ||||
| 148 | 60 | 1800 | 4.30(3.70) | 833(745) | 74.00 | 2.50 | |
| LA6-60 | 1500 | 3.80(3.40) | 882(801) | ||||
| 175 | 15 | 1800 | 19.00 | 1274.00 | 108.00 | 2.70 | |
| LA7-15 | 1500 | 18.00 | 1372.00 | ||||
| 175 | 20 | 1800 | 15.00 | 1274.00 | 108.00 | 2.70 | |
| LA7-20 | 1500 | 13.00 | 1274.00 | ||||
| 175 | 25 | 1800 | 11.00 | 1078.00 | 108.00 | 2.70 | |
| LA7-25 | 1500 | 9.80 | 1176.00 | ||||
| 175 | 30 | 1800 | 13.00 | 1470.00 | 108.00 | 2.70 | |
| LA7-30 | 1500 | 12.00 | 1568.00 | ||||
| 175 | 40 | 1800 | 10.00 | 1470.00 | 108.00 | 2.70 | |
| LA7-40 | 1500 | 9.20 | 1568.00 | ||||
| 175 | 50 | 1800 | 7.80(6.40) | 1274(1133) | 108.00 | 2.70 | |
| LA7-50 | 1500 | 7.20(6.00) | 1372(1252) | ||||
| 175 | 60 | 1800 | (6.70) | (1176.00) | 108.00 | 2.70 | |
| LA7-60 | 1500 | (6.20) | (1274.00) | ||||
| 200 | 15 | 1800 | 27.00 | 1764.00 | 156.00 | 3.50 | |
| LA8-15 | 1500 | 25.00 | 1960.00 | ||||
| 200 | 20 | 1800 | 21.00 | 1764.00 | 156.00 | 3.50 | |
| LA8-20 | 1500 | 19.00 | 1960.00 | ||||
| 200 | 25 | 1800 | 16.00 | 1666.00 | 156.00 | 3.50 | |
| LA8-25 | 1500 | 14.00 | 1764.00 | ||||
| 200 | 30 | 1800 | 18.00 | 2058.00 | 156.00 | 3.50 | |
| LA8-30 | 1500 | 17.00 | 2254.00 | ||||
| 200 | 40 | 1800 | 14.00 | 2058.00 | 156.00 | 3.50 | |
| LA8-40 | 1500 | 13.00 | 2156.00 | ||||
| 200 | 50 | 1800 | 11.00(8.50) | 1862(1468) | 156.00 | 3.50 | |
| LA8-50 | 1500 | 10.00(7.80) | 1960(1584) | ||||
| 200 | 60 | 1800 | 8.40(7.10) | 1666(1368) | 156.00 | 3.50 | |
| LA8-60 | 1500 | 7.60(6.50) | 1764(1472) | ||||
| 250 | 15 | 1800 | 48.00 | 3234.00 | 304.00 | 7.00 | |
| LA9-15 | 1500 | 42.00 | 3430.00 | ||||
| 250 | 20 | 1800 | 36.00 | 3136.00 | 304.00 | 7.00 | |
| LA9-20 | 1500 | 33.00 | 3430.00 | ||||
| 250 | 25 | 1800 | 29.00 | 2940.00 | 304.00 | 7.00 | |
| LA9-25 | 1500 | 26.00 | 3136.00 | ||||
| 250 | 30 | 1800 | 34.00 | 3920.00 | 304.00 | 7.00 | |
| LA9-30 | 1500 | 30.00 | 4116.00 | ||||
| 250 | 40 | 1800 | 24.00 | 3528.00 | 304.00 | 7.00 | |
| LA9-40 | 1500 | 24.00 | 4116.00 | ||||
| 250 | 50 | 1800 | 21.00 | 3430.00 | 304.00 | 7.00 | |
| LA9-50 | 1500 | 18.00 | 3528.00 | ||||
| 250 | 60 | 1800 | (15.00) | (3038.00) | 304.00 | 7.00 | |
| LA9-60 | 1500 | (14.00) | (3332.00) | ||||
| 295 | 20 | 1800 | - | - | 417.00 | 8.00 | |
| LA10-20 | 1500 | 54.00 | 5684.00 | ||||
| 295 | 30 | 1800 | - | - | 417.00 | 8.00 | |
| LA10-30 | 1500 | 47.00 | 6860.00 | ||||
| 295 | 40 | 1800 | - | - | 417.00 | 8.00 | |
| LA10-40 | 1500 | 38.00 | 6762.00 | ||||
| 295 | 50 | 1800 | - | - | 417.00 | 8.00 | |
| LA10-50 | 1500 | 25.00 | 5586.00 | ||||
| 295 | 60 | 1800 | - | - | 417.00 | 8.00 | |
| LA10-60 | 1500 | 22.00 | 5292.00 | ||||
